U-Light
Timo Ripatti

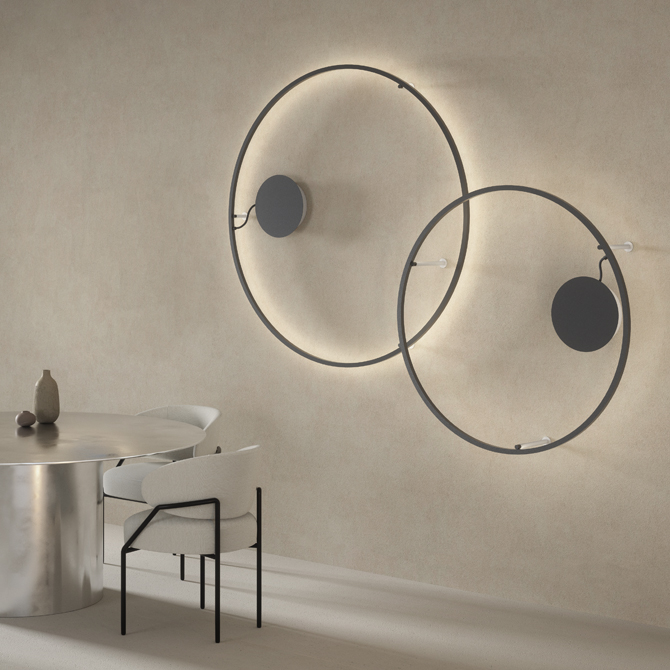

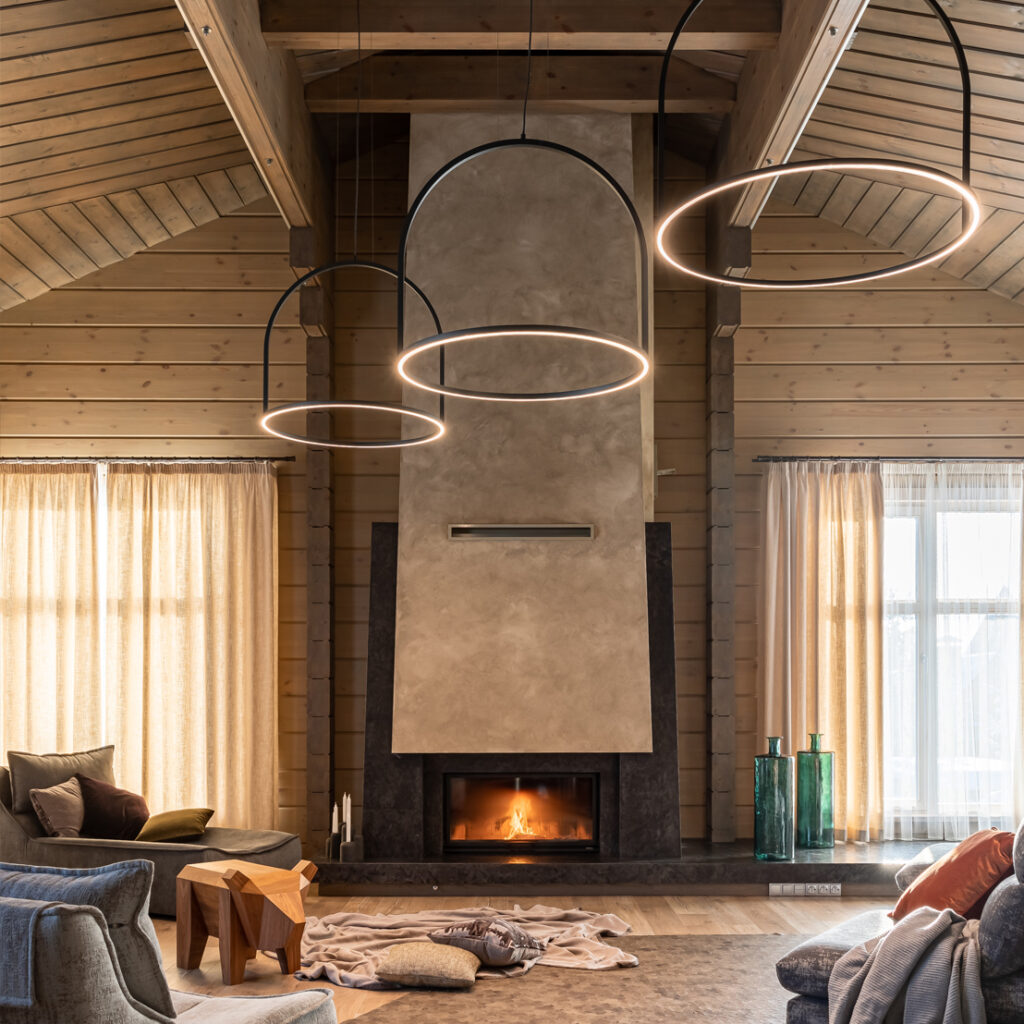

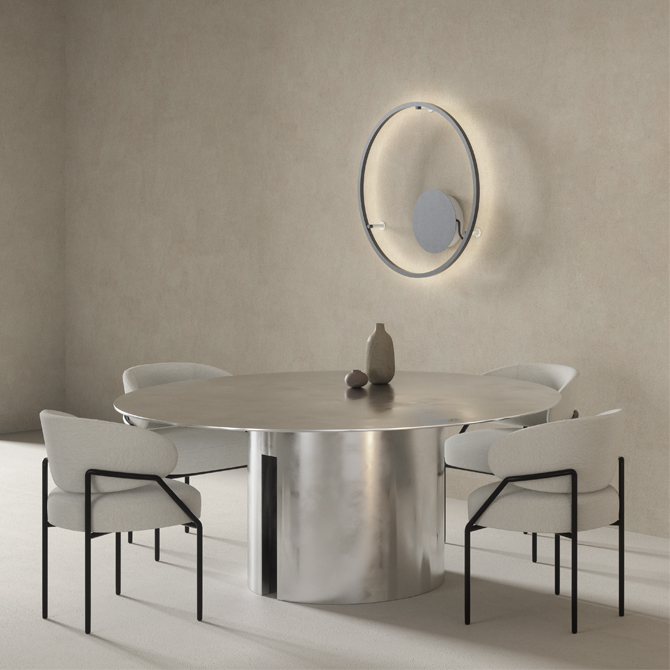

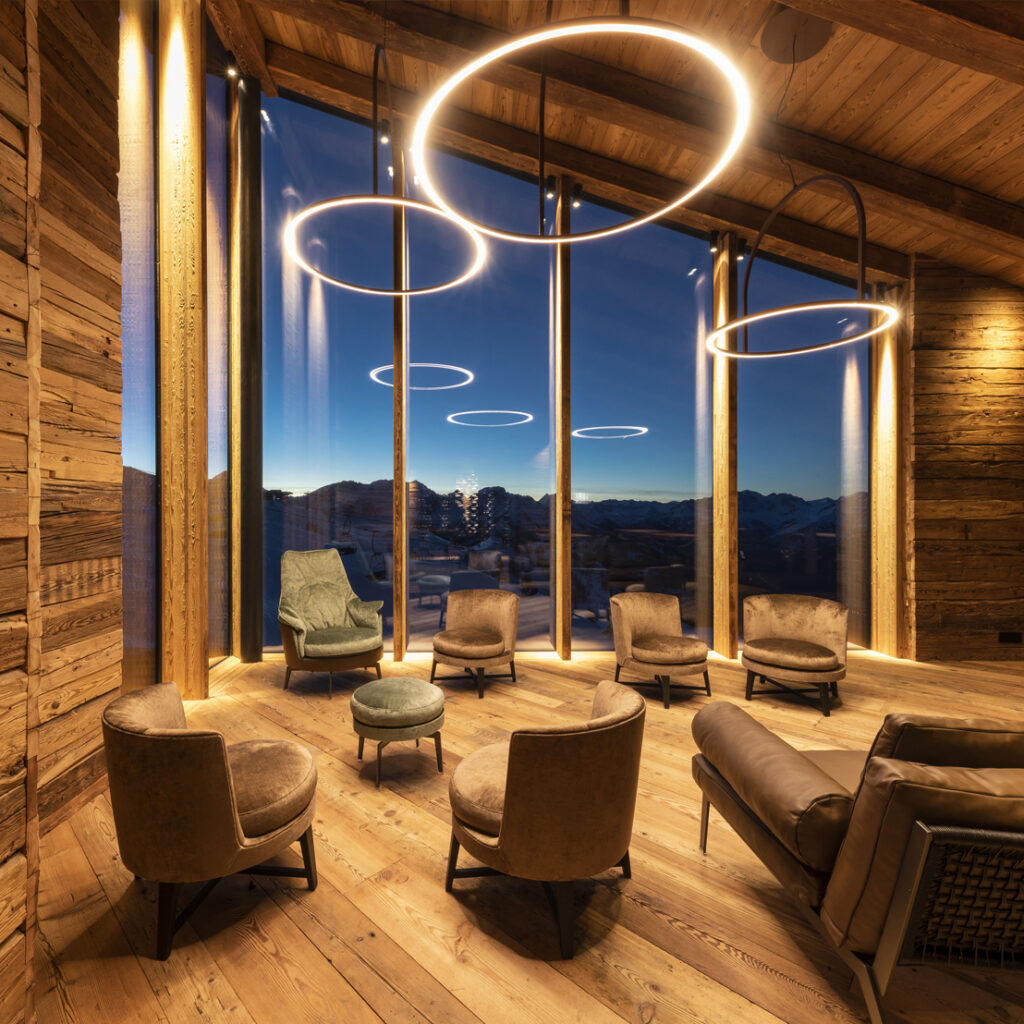

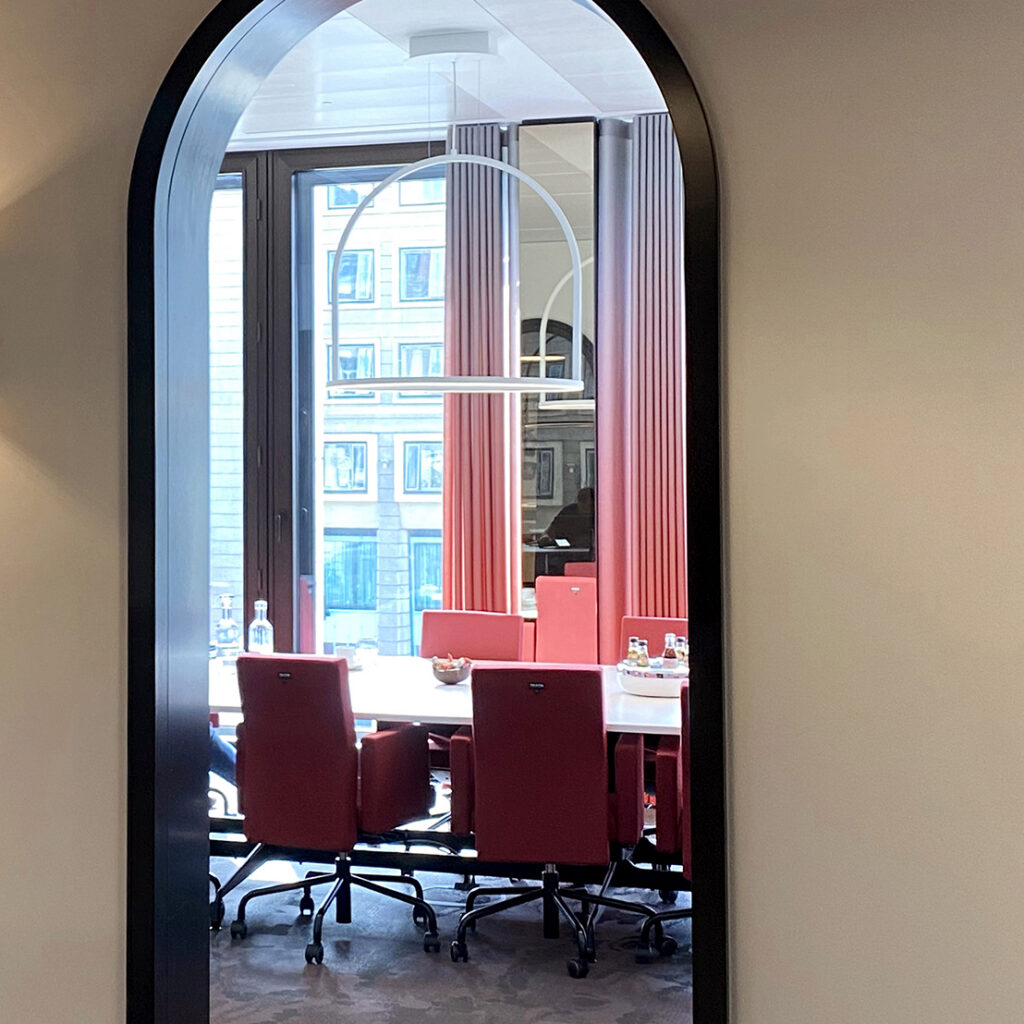

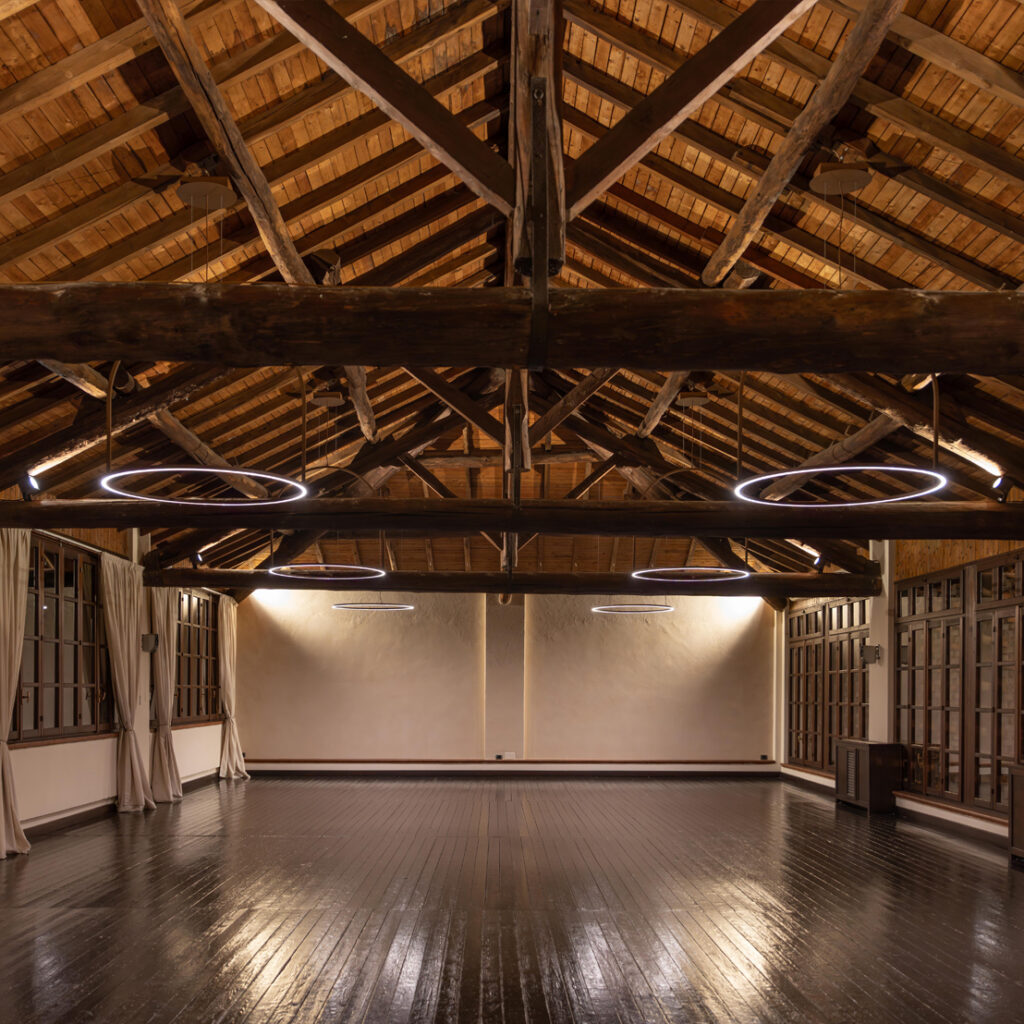

U-Light is a seamless fusion of minimalist design and powerful illumination, balancing visual precision with bold aesthetic impact. Its ultra-thin metalprofile houses a high-performance LED source, casting light with grace and sophistication. With its sculptural presence, U-Light enhances interiors while maintaining a minimalist elegance. The collection, featuring suspension and ceiling lights, combines simplicity and refinement in every detail.
METAL COLOR
Surface canopy
Dry location
1-10V
CRI90
Recessed canopy
Dry location
CRI90
UPUL
DOWNLOAD
| CCT | Ø90cm 35,4" | Ø120cm 47,2" | Ø160cm 63" | Ø180cm 70,9" |
|---|---|---|---|---|
| 2700K | Surface canopy 63W Recessed canopy 54W 4642lm |
Surface canopy 86W Recessed canopy 74W 6962lm |
Surface canopy 125W Recessed canopy 102W 8122lm |
Surface canopy 153W Recessed canopy 123W 9283lm |
| 3000K | Surface canopy 63W Recessed canopy 54W 5158lm |
Surface canopy 86W Recessed canopy 74W 7736lm |
Surface canopy 125W Recessed canopy 102W 9025lm |
Surface canopy 153W Recessed canopy 123W 10315lm |
| 3500K | Surface canopy 63W Recessed canopy 54W 5829lm |
Surface canopy 86W Recessed canopy 74W 8742lm |
Surface canopy 125W Recessed canopy 102W 10198lm |
Surface canopy 153W Recessed canopy 123W 11656lm |
| CCT | 2700K |
| Ø90cm 35,4" | Surface canopy 63W Recessed canopy 54W 4642lm |
| Ø120cm 47,2" | Surface canopy 86W Recessed canopy 74W 6962lm |
| Ø160cm 63" | Surface canopy 125W Recessed canopy 102W 8122lm |
| Ø180cm 70,9" | Surface canopy 153W Recessed canopy 123W 9283lm |
| CCT | 3000K |
| Ø90cm 35,4" | Surface canopy 63W Recessed canopy 54W 5158lm |
| Ø120cm 47,2" | Surface canopy 86W Recessed canopy 74W 7736lm |
| Ø160cm 63" | Surface canopy 125W Recessed canopy 102W 9025lm |
| Ø180cm 70,9" | Surface canopy 153W Recessed canopy 123W 10315lm |
| CCT | 3500K |
| Ø90cm 35,4" | Surface canopy 63W Recessed canopy 54W 5829lm |
| Ø120cm 47,2" | Surface canopy 86W Recessed canopy 74W 8742lm |
| Ø160cm 63" | Surface canopy 125W Recessed canopy 102W 10198lm |
| Ø180cm 70,9" | Surface canopy 153W Recessed canopy 123W 11656lm |
| SOURCE | SUPPLY | LED DRIVER | ||
|---|---|---|---|---|
| LED | 100-305VAC | Surface canopy - Included | ||
| 24VDC | Recessed canopy - Not Included |
| SOURCE | LED |
| SUPPLY |
100-305VAC 24VDC |
| LED DRIVER |
Surface canopy - Included Recessed canopy - Not Included |
CODE
Build your code by choosing each attribute
UPUL
| DRIVERS | |||
|---|---|---|---|
| 24VDC - for recessed canopy | Number of drivers | ||
| CEDLTF00609 | 0 -10V, IGBT-TRIAC, ELV Max 96W |
1 Ø120 47,2" 2 Ø180 70,9" |
|
| CEDLTF00610 | 0 -10V, IGBT-TRIAC, ELV Max 75W |
1 Ø90 35,4" 2 Ø180 70,9" |
|
| CEDLTF00611 | 0 -10V, IGBT-TRIAC, ELV Max 60W | 2 Ø160 63" | |
| DRIVERS | |
|---|---|
| 24VDC - for recessed canopy | |
| CEDLTF00609 | |
| Number of drivers | |
| 1 Ø120 47,2" 2 Ø180 70,9" |
|
| 24VDC - for recessed canopy | |
| CEDLTF00610 | |
| Number of drivers | |
| 1 Ø90 35,4" 2 Ø180 70,9" |
|
| 24VDC - for recessed canopy | |
| CEDLTF00611 | |
| Number of drivers | |
| 2 Ø160 63" | |
